Able Engravers

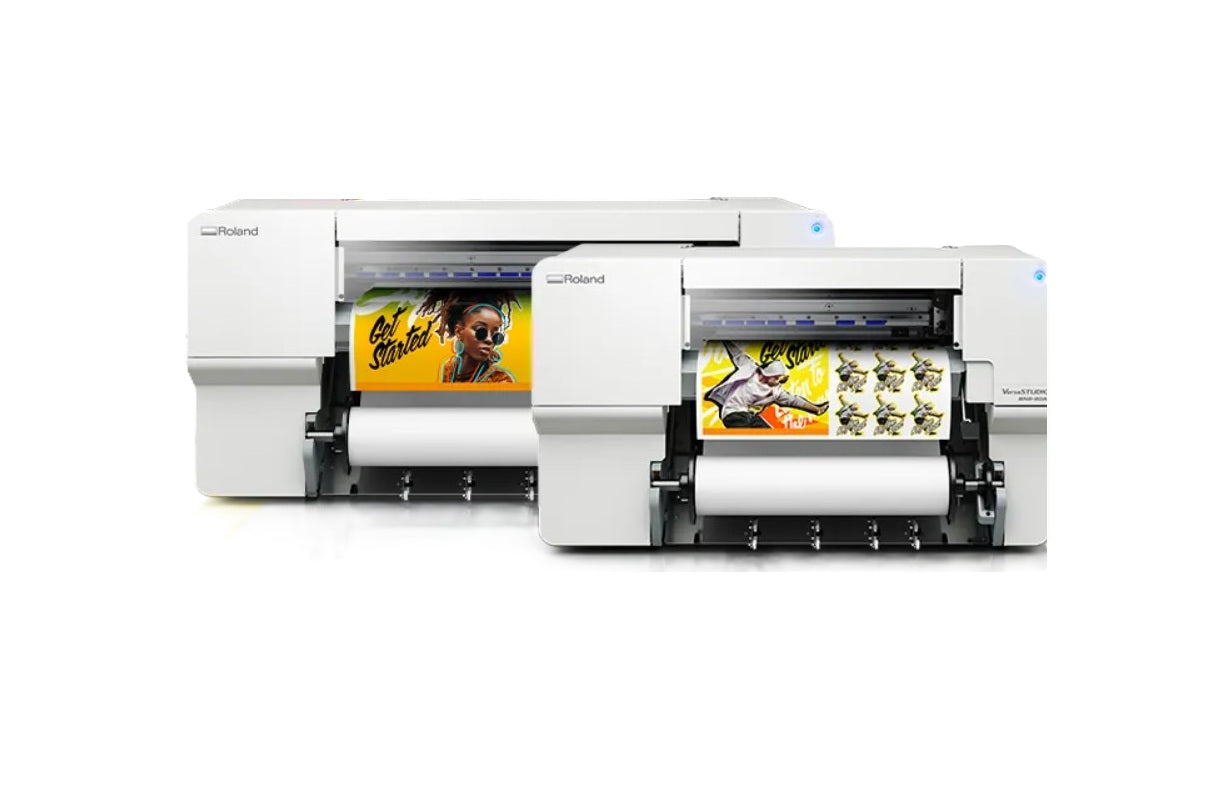

BN2-20A / BN2-30

With the next-generation BN2, Roland DG has taken a great thing and made it even better. These compact powerhouses offer significantly faster print speeds, convenient new features, ease of use, and a space-saving design that allows for placement in a home, office, or shop. The BN2 is everything you need to get started in professional print and cut graphics production.

Professional quality printing and cutting functionality allows for a wide range of applications
Faster print speeds for optimum productivity
Affordably priced to suit the budgets of start-ups, & smaller businesses
Easy to use – even for those with no prior printing experience
Compact size is ideal for print environments with limited space
Feature-filled, intuitive design and output software included

SPECIFICATIONS

BN2-20A	BN2-30
Printer Method		Piezo ink-jet method
Media	Width	5.91 to 20.2 in. (150 to 515 mm)	5.91 to 30 in. (150 to 762 mm)
	Thickness	Maximum 1.0 mm (39.3 mil) with liner, for printing Maximum 0.4 mm (15.7 mil) with liner and 0.22 mm (8.6 mil) without liner, for cutting
	Roll outer diameter	Maximum 5.9 in. (150 mm)	Maximum 6.49 in. (165 mm)
	Roll weight	Maximum 13.2 lb. (6 kg)	Maximum 26.4 lb. (12 kg)
	Core diameter	3 in. (76.2 mm) or 2 in. (50.8 mm )
*Printing/cutting width (1)**		Maximum 18.89 in. (480 mm)	Maximum 28.97 in. (736 mm)
Ink	Type	220-ml cartridge
Ink	Colors	Cyan, Magenta, Yellow, Black	Four color (Cyan, Magenta, Yellow, Black) Five color (Cyan, Magenta, Yellow, Black, White)
Printing resolution (dots per inch)		Maximum 1,440 dpi
Cutting speed		0.39 to 5.9 in/s (10 to 150 mm/s)
*Blade force (2)**		30 to 500 gf
Blade	Type	Roland CAMM-1 series blade
Blade	Offset	0.000 to 1.500 mm (0.0 to 59 mil)
Software resolution (when cutting)		0.025 mm/step (0.98 mil/step)
*Media heating system (3)**	Print heater set temperature:	86 to 95 °F (30 to 35 °C)	86 to 104 °F (30 to 40 °C)
*Media heating system (3)**	Dryer set temperature:	86 to 100.4 °F (30 to 38 °C)	86 to 113 °F (30 to 45 °C)
Connectivity		Ethernet (100BASE-TX/1000BASE-T, automatic switching)
Power-saving function		Automatic sleep feature
Rated input		100-240 Va.c. 50/60 Hz 2.1 A	100-240 Va.c. 50/60 Hz 2.9 A
Power consumption	During operation	Approx.185 W	Approx.260 W
Power consumption	Sleep mode	Approx.27W
Acoustic noise level	During operation	62 dB (A) or less	65 dB (A) or less
Acoustic noise level	During standby	60 dB (A) or less	63 dB (A) or less
Dimensions (Width x Depth x Height)		42.1 in. × 24.3 in. × 24.5 in. (1,069 mm × 617 mm × 622 mm)	52.1 in. × 24.3 in. × 24.5 in. (1,323 mm × 617 mm × 622 mm)
Weight		137 lb. (62 kg)	164 lb. (74 kg)
Environment	*During operation (4)**	Temperature: 68 to 89.6 °F (20 to 32 °C), Humidity: 35 to 80 % RH (no condensation)
Environment	Not operating	Temperature: 41 to 104 °F (5 to 40 °C) Humidity: 20 to 80 % RH (no condensation)
Included items		Power cord, media holders, replacement blade for separating knife, User's Manual, Software (Roland DG Connect Designer, VersaSTUDIO Edition, VersaWorks, Roland DG Connect), etc.

*1	The length of printing or cutting is subject to the limitations of the program.
*2	500 gf is the maximum instantaneous blade force. The blade force must be adjusted according to details such as the media thickness.
*3	Warm-up is required after power up. This may require 5 to 20 minutes, depending on the operating environment. Depending on the ambient temperature and media width, the preset temperature may fail to be reached.
*4	Operating environment（Use in an operating environment within this range.)

$11,595.00 USD

Sale Sold out

Shipping calculated at checkout.

View full details
