PM-5CA

SKU  PM-5CA

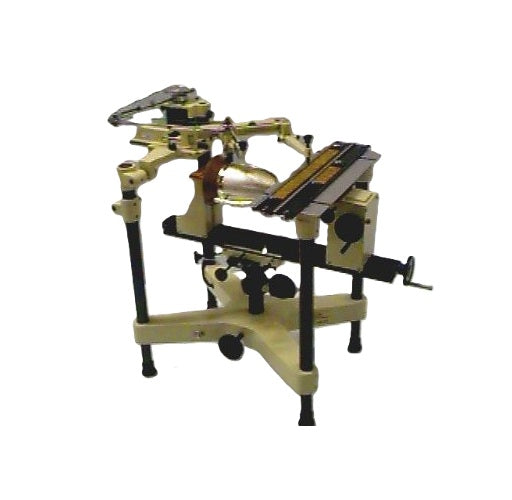

The PM-5CA is a large size engraver used for engraving objects up to 12-1/2" high by any length. This machine will accept high and bulky objects.

Vise depth is 5" centers. This universal work-holding vise allows the clamping and engraving of large trophy cups & mugs up to 9" in diameter.

The machine is fitted with a scissors jack which enables the operator to move the vise up and down, backward & forward, as well as tilting it.

Standard Accessories:

·   Multi-ratio pantograph, 21 ratios between 2:1 and 7:1

·   Roller Bearings on Pantograph

·   1 Heavy Duty Induction Type Motor, no brushes, 40W, 110Volt A.C.

·   1 Vise, 12-1/2" opening, self centering, 6" depth, 5" elevation system

·   Scissors jack to raise vise, universal cup cone & back plate support

·   Graduated Copy Table 6" x 16", Accessory Case with Tools

·   2 Copy Slides for 1" type with end stops, 2 Motor Belts

·   3 Carbide cutters, .020, .030 & .040 tip size

·   1 Set of 1" Block Style Master Type, 2 Polished Steel Nose Cones

·   Micrometer Adjustment for Depth Regulator, 1 Nylon Nose Cone

·   Motor Belt Tension with 2 idler pulleys, 50 nameplate blanks

·   Tension Adjustment, 1 Tracing Stylus, Protective Cover & Instructional Video. Approximate Shipping Weight: 150 lbs
