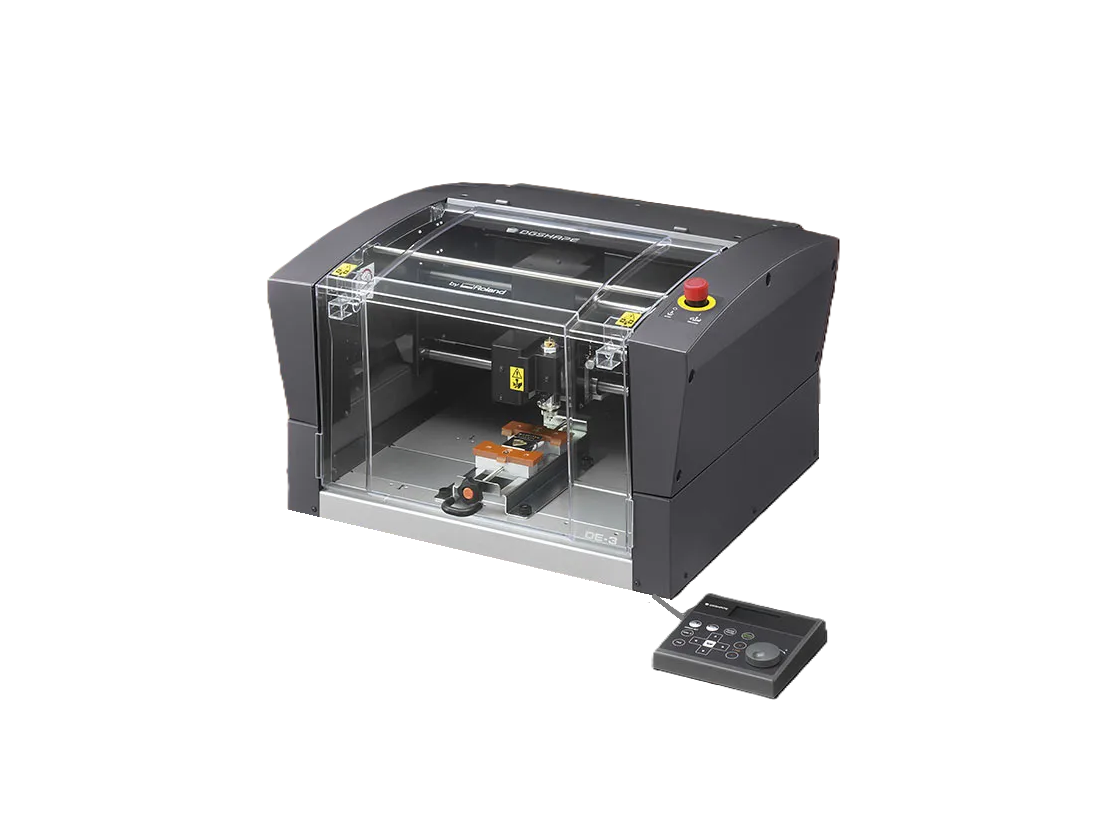

ROLAND DE-3 DGSHAPE ENGRAVER

SKU   DE-3

Roland continues to break new ground in rotary engraving with the DGSHAPE DE-3. Featuring laser-pointing technology, ethernet connectivity, automatic depth regulation and other intelligent enhancements, the DE-3 is the smartest, most intuitive desktop rotary engraver on the market.

Precise. Productive. Profitable.

Meet the DE-3.

The automated features of the Roland DE-3 offer a simplified set-up and operation to quickly and precisely engrave delicate and tough materials.

DE-3 Applications:

• Wedding
• ADA Signs
• Picture Frames
• Hardware
• Award
• Electronics
• Ad specialties
• Hobby
• Medical
• Education
• Funerary
• Stationary
• Desk accessories
• Labeling
• Watch/Jewelry
• Wood working
• Cosmetics
• Eyewear
• Fashion
• Cannabis
• Sporting Goods
• Boat MFG
• Toy MFG
• Fast Production

Advanced surface detection enables quick and simple set-up, while a 20,000 rpm DC brushless motor engraves at top speed.

User Replaceable Spindle
Easily-applied nose cones avoid scratches to delicate materials and deliver consistently precise results.

Ethernet Connection
Machine operation can be managed remotely—offering LAN network connectivity for multiple machine engraving.

Laser Pointer
Automatically define the origin point and view a path preview for accurate personalization and engraving every time.

Discover More Applications with DGSHAPE Engraving

Customize brass, aluminum, copper, engraving plastic, wooden items and more, with the speed, precision and ease of the powerful, compact DE-3.

Open Architecture and New Software

The DE-3 works out-of-the-box with popular engraving software, industry standard tools, and materials. It also features Roland's Dr. Engrave Plus software that offers new user advantages.

• Supports AI files and standard graphic/vector data.
• Import Excel and CSV files for nametags, serial numbers, and other variable data projects.
• Enables standard engraving as well as surface levelling and hole drilling.

Handy Panel Control

Without the need for computer setup, users can store job data and perform machine operations.

Reliability and Support

As the world leader in desktop rotary engraving devices, Roland DG offers users unmatched product performance and reliability, backed by industry-leading service and support. The DE-3 comes with a comprehensive One-Year Trouble-Free Warranty.

Included Accessories

Vacuum adapter, character cutter, solid collet, hex screwdriver, two wrenches, nose unit, nose cone, spring, retaining screw, Dr Engrave Plus (not shown). Optional accessories: center vise, 3.46 collet, replacement spindle, nose cone.

Specs

Work table size
Width x depth: 305 x 230 mm (12” x 9”)

XYZ operation stroke
305 mm (X 12”) x 230 mm (Y 9”) x 40 mm (Z 1.57”)

XYZ axis drive system
Stepping motor, three axes simultaneous control

Operating speed
XY axis: 0.1 mm to 60 mm / sec, Z axis: 0.1 to 30 mm / sec

Software resolution
0.01 mm / step, or 0.025 mm / step

Mechanical resolution
XY axis: 0.0025 mm / step, Z axis: 0.00125 mm / step

Spindle motor
Brushless DC motor, maximum 50 W

Spindle rotation speed
5,000 to 20,000 rpm

Tool Chuck
Cutter holder, collet type

Thickness of the installable workpiece
Up to 40 mm (maximum 38 mm when using a nose unit). Up to 40 mm (maximum 38 mm when using a nose unit) 1.57”

Interface
USB, LAN

Accessibility function
Origin setting by a laser pointer, the preview function

Control command
RML-1

Power supply
AC100~240V ± 10%、50/60Hz, 1.3A, 127W

Operating sound
Operating: 60 dB (A) or less (uncut), standby: 40 dB (A) or less (according to ISO 7779)

External dimensions, weight
Width x depth x height: 616 (2’02”) x 591(1’9”) × 393 mm (1’2”), Weight 34 kg (75 LBS)

Installation environment
Operating environment: Temperature 5° to 40° C, humidity 35 to 80% (no dew condensation) Environmental pollution degree: 3 (according to IEC 60664-1)

Accessories
Power cord, power plug adapter, USB cable, nose unit (metal, plastic nose cone), solid collet (∅ 3.175mm), wrench unit, hexagonal wrench, hexagonal screwdriver, hexagonal screwdriver, hexagonal screwdriver, handy panel, sticky clothing (stainless steel spring), spare set screw (for cutter holder) Sheet, dust collection adapter, character cutter, DGSHAPE Software Package CD-ROM, user's manual, setup guide (booklet)
manual, setup guide (booklet)
