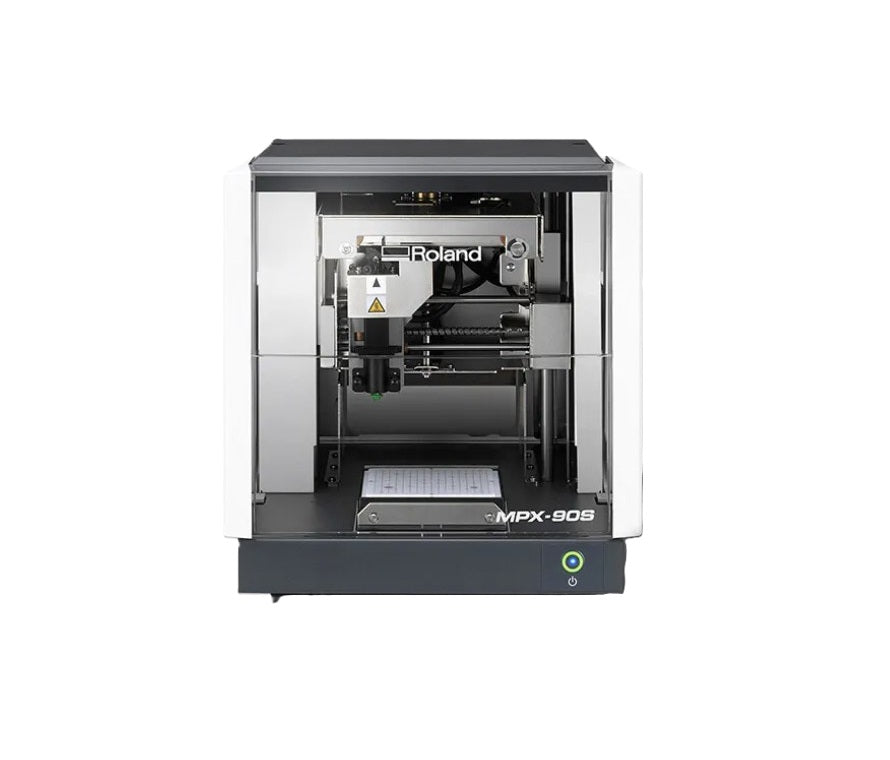

VERSASTUDIO MPX-90S PHOTO METAL IMPACT PRINTER

Model

MPX-90S

Imprintable material

Gold, silver, copper, platinum, brass, aluminum, iron, stainless steel, titanium, etc.
(Vickers hardness [HV] of the imprint surface must be 200 or less.)

Base plate only:

Loadable material size

Max. 3.9 in. (W) X 7.9 in. (L) X 2.8 in. (H)
(100 mm (W) X 200 mm (L) X 70 mm (H))
or
7.9 in. X 3.9 in. X 2.8 in.
(200 mm (W) X 100 mm (L) X 70 mm (H))
*The above are for when the cover is closed. When the cover is open, there is no limit on how large the material can be, but the imprint area of the material must be placed within the imprint area.

Imprint area

Maximum imprintable area

3.2 in. (W) X 3.2 in. (D) X 2.8 in. (H)
80 mm (W) X 80 mm (D) X 70 mm (H)

Recommended imprint area

2.0 in. (W) X 2.0 in. (D) X 2.8 in (H)
50 mm (W) . 50 mm (D) . 70 mm (H)

Resolution

High resolution

529 dpi


353 dpi

Text

265 dpi

Vector

1058 dpi

Imprint direction

Unidirectional imprinting or bidirectional imprinting (Selectable with Windows driver)

Imprint speed (Default)


2.0 in./sec (50 mm/sec)

High resolution/Text

1.2 in./sec (33 mm/sec)

Vector

0.94 in./sec (24 mm/sec)

Interface

USB

Power requirements

Dedicated AC adapter

AC 100 to 240 V ±10%, 50/60 Hz

Main unit

DC 19 V, 1.2 A

Power consumption

Approx. 21 W

Operating noise

70 dB (A) or less

Operating temperature

50 to 86°F (10 to 30°C)

Operating humidity

35 to 80% (no condensation)

External dimensions

11.3 in. (W) x 15.1 in. (D) x 12.2 in. (H)
286 mm (W) x 383 mm (D) x 308 mm (H)
